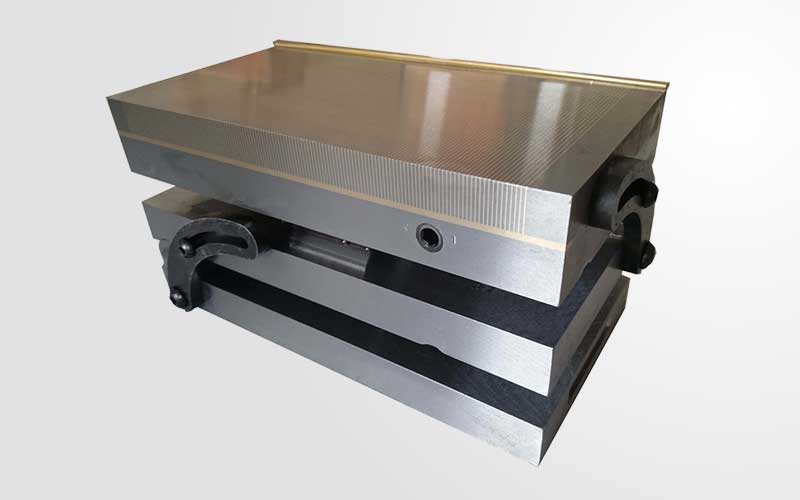

Double sine permanent magnetic chuck

APPLICATION

Ideal for high accuracy grinding operations

Suitable for grinding EDM of angle process

Wide range of workpieces can be used by tilting in length, breadth or compound angle

FEATURES

Holding force: 80N/cm2

Grind in two angles at the same time

High adjustment accuracy, no flatness change when switch On/Off

Pole pitch: 1.5+0.5mm

Made by hardened alloy tool steel

Strong suction, small remanent magnetization, uniform magnetic force distribution

Large effective machining area

Angle precision 0.007/100mm, low height for more weel clearance
