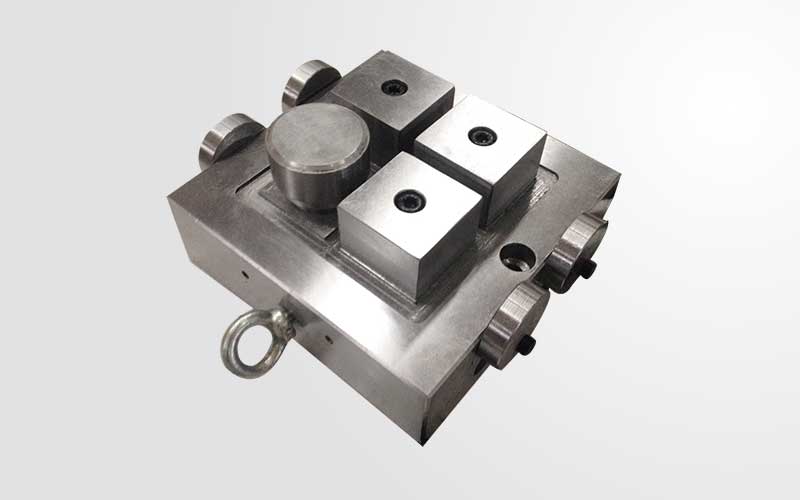

Full-steel electro permanent magnetic chuck
EPM-FS
Application
For milling and grinding processes
Best suited for workpieces at least 250x250mm and 10mm thick, also with limited thickness and normal operating air gaps
Features
Full steel structure
Excellent water proof capacity
Pole size：50 ×50mm
350 kgf for each pole
High poles density
Magnetic field depth：10mm
Hot keywords:Full-steel electro permanent magnetic chuck
PRODUCT SELECTION TABLE
Model
Length
A(mm)
A(mm)
Width
B(mm)
B(mm)
Height
H(mm)
H(mm)
Weight
(kg)
(kg)
Number of
poles(PCS)
poles(PCS)
EPMFS-303
329
303
66
50
16
EPMFS-305
491
303
66
75
24
EPMFS-306
609
303
66
95
32
EPMFS-405
491
421
66
100
36
EPMFS-406
609
421
66
130
48
EPMFS-508
771
480
66
195
70
EPMFS-608
771
598
66
235
90
EPMFS-610
1007
598
66
325
126
