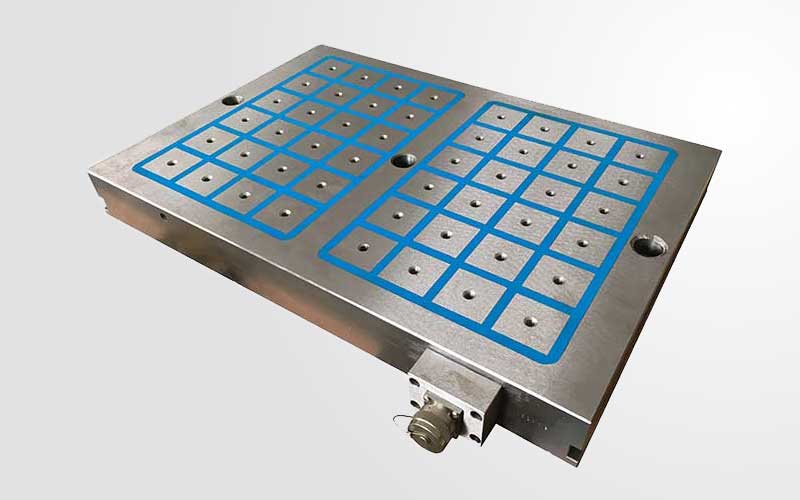

High density electro permanent magnetic chuck with square 50×50 poles
EPM50H
APPLICATION
For milling and grinding processes
Best suited for workpieces at least 250x250mm and 10mm thick, also with limited thickness and normal operating air gaps
FEATURES
Pole size：50 ×50mm
380kgf for each pole
High poles density
Magnetic field depth：10mm
5-sided machining is possible in one clamp
Energy saving, no electric power supply during clamping
Workpieces larger than table surface are machinable
Facilitated interaction with CAD/CAM system, simplified CNC or FMS programming
Reduced consumption of tools
Improved finishing and greater accuracies
More convenient and high efficiency
Hot keywords:magnetic chuck, magnetic workholding, magnetic clamp
PRODUCT SELECTION TABLE
Model
Length
A(mm)
A(mm)
Width
B(mm)
B(mm)
Height
H(mm)
H(mm)
Weight
(kg)
(kg)
Number of
poles(PCS)
poles(PCS)
EPM50H-303
329
303
66
50
16
EPM50H-305
491
303
66
75
24
EPM50H-306
609
303
66
95
32
EPM50H-405
491
421
66
100
36
EPM50H-406
609
421
66
130
48
EPM50H-508
771
480
66
195
70
EPM50H-608
771
598
66
235
90
EPM50H-610
1007
598
66
325
126
