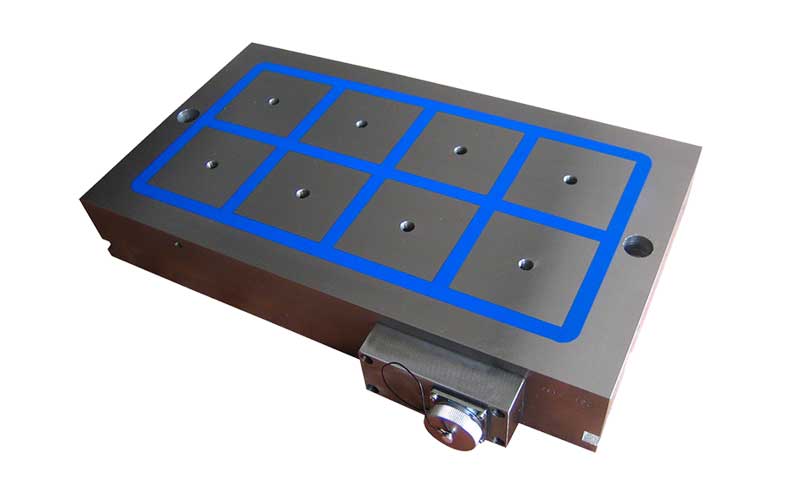

High density powerful electro permanent magnetic chuck with square 75×75 poles
EPM75S
APPLICATION
For milling and grinding processes
Best suited for workpieces at least 400x400mm and 18mm thick, also with high operating air gaps
FEATURES
Pole size：75 ×75mm
850 kgf for each pole
High poles density
Magnetic field depth：18mm
Hot keywords:High accurancy, High efficiency, High quality
PRODUCT SELECTION TABLE
Model
Length
A(mm)
A(mm)
Width
B(mm)
B(mm)
Height
H(mm)
H(mm)
Weight
(kg)
(kg)
Number of
poles(PCS)
poles(PCS)
EPM75S-306
611
327
80
110
18
EPM75S-406
611
413
80
145
24
EPM75S-408
697
413
80
190
32
EPM75S-506
611
500
80
170
30
EPM75S-508
829
500
80
225
40
EPM75S-606
611
585
80
205
36
EPM75S-608
829
585
80
270
48
EPM75S-610
1001
585
80
335
60
