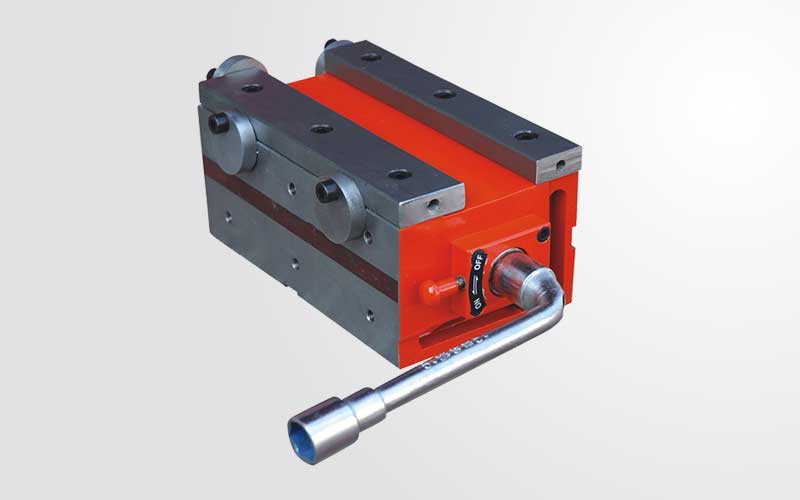

Multifunction magnetic vise
MMV
APPLICATION
Suitable for medium and large workpieces not for small ones.
FEATURES
1. Five sides machining can be realized. Complete drilling, tapping, slotting just once.
2. Free to set up position, numbers and distance of magnetic workholding acccording to the size of workpiece.
3. It includes changable induction metal block which can be fixed to be 100% accuracy on the workholding before workpiece processing. Also can complete drilling, tapping and slotting directly to the induction metal block during workpiece processing.
4. Finishing workpiece processing when the two steps have been done, efficiency and accuracy are both increased.
Hot keywords:
PRODUCT SELECTION TABLE
MODEL
DIMENTIONS(MM)
LENGTH
WIDTH
HEIGHT
MIN THICKNESS OF WORKPIECES(MM)
HOLDING FORCE ON THE TOP(KGF)
HOLDING FORCE ON 2 SIDES(KGF)
WEIGHT (KG)
MMV-25
125
100
74
15
200
250
5
MMV-50
157
105
80
15
350
500
10
MMV-100
199
122
94
20
750
1000
18
MMV-150
231138
138
110
25
1200
1500
26
MMV-200
297138
138
110
30
1500
2000
34
