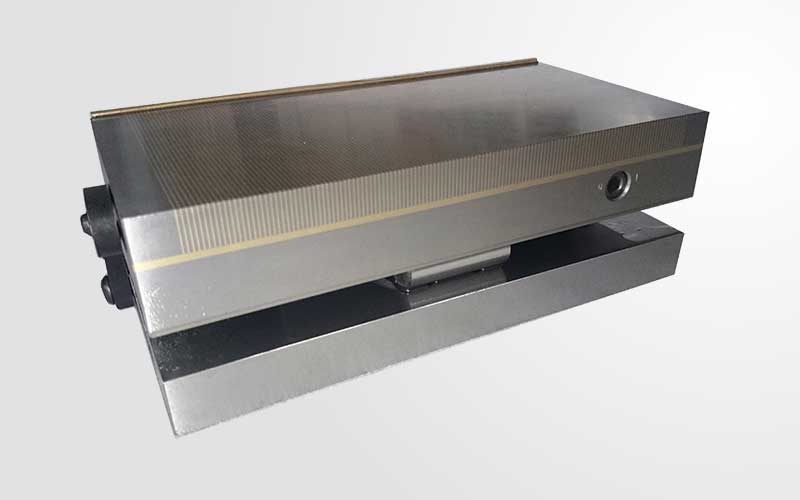

Single sine permanent magnetic chuck
MCS
APPLICATION
Ideal for high accuracy grinding operations
Suitable for small workpieces
FEATURES
Holding force: 80N/cm2
High adjustment accuracy, no flatness change when switch On/Off
Pole pitch: 1.5+0.5mm
Strong suction, small remanent magnetization, uniform magnetic force distribution
Large effective machining area
Angle precision 0.007/100mm, low height for more weel clearance
Hot keywords:High accurancy, High efficiency, High quality
PRODUCT SELECTION TABLE
MODEL
DIMENSION(MM)
A
B
C
D
NET(KGS)
POLE PITCH(MM)
OPERATING ANGLE
MCS1018
180
104
100
215
10.5
0.5+1.5
0º-50º
MCS1025
250
104
100
285
15
0.5+1.5
0º-50º
MCS1225
250
120
100
285
17
0.5+1.5
0º-50º
MCS1530
300
150
100
335
25
0.5+1.5
0º-50º
MCS1545
450
150
110
380
37
0.5+1.5
0º-50º
MCS2040
400
200
110
435
44
0.5+1.5
0º-50º
MCS2050
500
200
110
535
55
0.5+1.5
0º-50º
