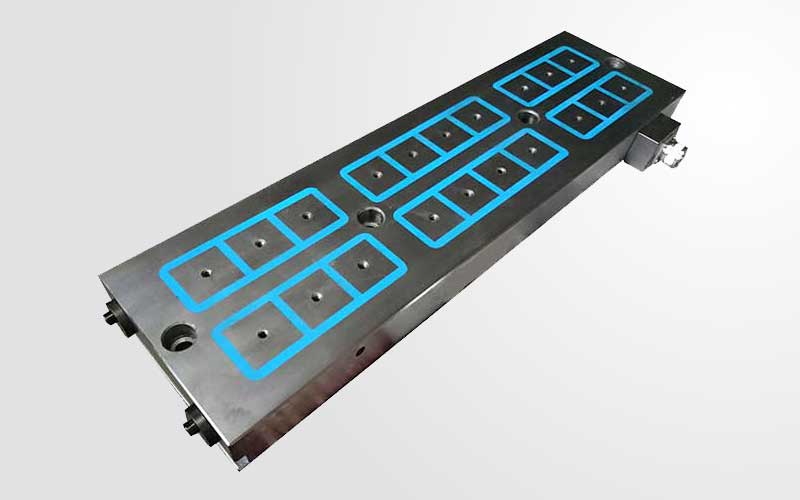

Standard density electro permanent magnetic chuck with square 50×50 poles
EPM50
APPLICATION
For milling and grinding processes
Best suited for workpieces at least 250x250mm and 10mm thick, also with limited thickness and normal operating air gaps
FEATURES
Pole size：50 ×50mm
380kgf for each pole
Magnetic field depth：10mm
Hot keywords:magnetic chuck, magnetic workholding, magnetic clamp
PRODUCT SELECTION TABLE
Model
Length
A(mm)
A(mm)
Width
B(mm)
B(mm)
Height
H(mm)
H(mm)
Weight
(kg)
(kg)
Number of
poles(PCS)
poles(PCS)
EPM50-303
329
302
66
50
12
EPM50-305
491
302
66
75
18
EPM50-306
609
302
66
95
24
EPM50-405
491
390
66
95
24
EPM50-406
609
390
66
125
32
EPM50-508
771
478
66
190
50
EPM50-608
771
566
66
230
60
EPM50-610
1051
566
66
315
84
