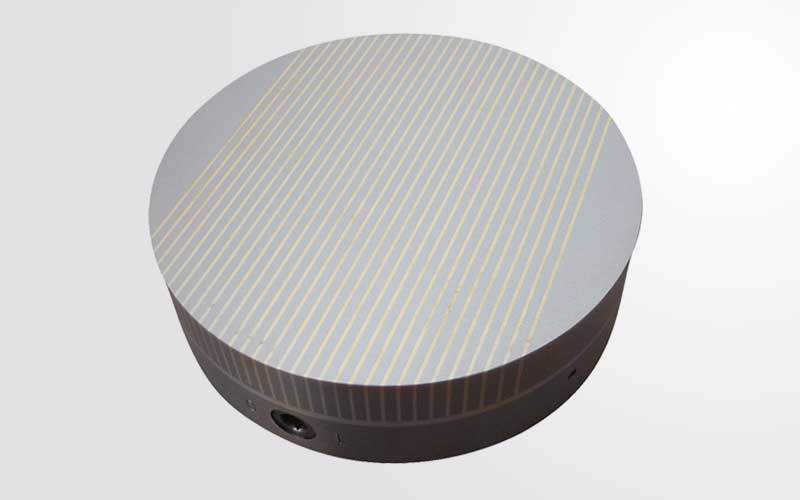

Standard round permanent magnetic chuck
RMF
APPLICATION
Best for small and thin workpieces with medium size
FEATURES
Extremely low height due to NdFeB magnets
With coolant and water proof structure
Can be switched ON or OFF by hand lever
Nominal holding force: 90 N/cm2
Magnetic field depth: 8mm
Pole plate wearing limit: 5mm
Pole pitch: steel 3mm, brass 1mm
Hot keywords:High accurancy, High efficiency, High quality
PRODUCT SELECTION TABLE
MODEL
DIMENTIONS(MM)
A
B
C
D
E
F
WEIGHT(KG)
POLEPITCH(MM)
RMF100
100
51
80
2
88
M6(4x)
3.5
1+3
RMF160
160
51
125
2
140
M8(4x)
7.5
1+3
RMF200
200
51
160
2
180
M10(4x)
12
1+3
RMF250
250
51
200
2
224
M10(4x)
18
1+3
RMF300
300
51
250
2
280
M10(4x)
28
1+3
RMF350
350
51
315
2
355
M10(4x)
52
1+3
