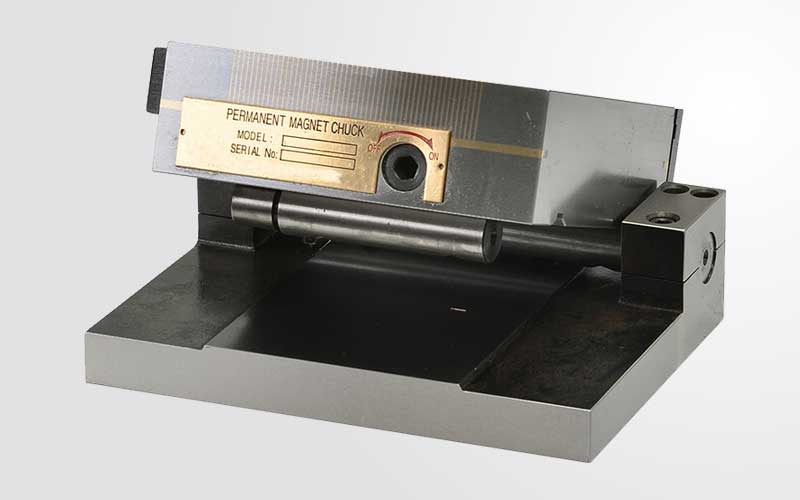

Uniaxial single sine permanent magnetic chuck
U-MCS
APPLICATION
Ideal for high accuracy grinding operations
Suitable for small workpieces
FEATURES
High adjustment accuracy, no flatness change when switch On/Off
Pole pitch: 1.5+0.5mm
Made by hardened alloy tool steel
Strong suction, small remanent magnetization, uniform magnetic force distribution
Large effective machining area
Angle precision 0.007/100mm, low height for more weel clearance
Hot keywords:
PRODUCT SELECTION TABLE
MODEL
DIMENTIONS(MM)
LENGTH
WIDTH
HEIGHT
WEIGHT (KG)
POLE PITCH (MM)
OPERATING ANGLE
U-MCS1018
180
104
100
10.5
0.5+1.5
0º-50º
U-MCS1025
250
104
100
15
0.5+1.5
0º-50º
U-MCS1225
250
120
100
17
0.5+1.5
0º-50º
U-MCS1530
300
150
100
25
0.5+1.5
0º-50º
U-MCS1545
450
150
110
37
0.5+1.5
0º-50º
U-MCS2040
400
200
110
44
0.5+1.5
0º-50º
U-MCS2050
500
200
110
55
0.5+1.5
0º-50º
